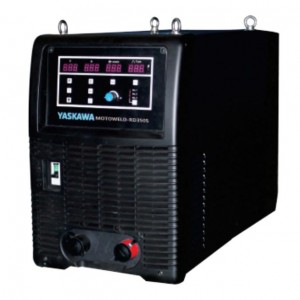

YASKAWA RD350S

Short Description:

High-quality welding can be achieved for both thin and medium-thick plates

Product Detail

Product Tags

Technical Support:

Weldcom function

The setting operation or data management of the welding power source corresponds to the digital interface (WELDCOM function) through the robot control cabinet(YRC1000). Operation and maintainability are greatly improved

Improment

Freeze usage rate:RD350 60% -- RD350S 100%

RD350 continuous welding max 270A -- RD350S continuous welding can be up to 350A

Welding power supply parameters can be backed up in the robot control cabinet

System structure connection diagram:

Standard composition

No.	Item	Specification	Unit	Quantity	Note
1	robot	AR1440/AR2010	set	1
2	welding power	RD350S	set	1
3	Air-cooled 350A w. gun	-	set	1
4	wire feeder	YWC-WFRDM42RD	set	1
5	gas flow regulator	-	set	1	optional

Welding power supply technical parameters

Model	RD350S
rated input voltage	3 phase AC 400V±10% 50/60Hz
rated output	350A
output current range	30-350A
output voltage range	12-36V
rated usage rate	100% (ten-minute cycle)
applicable materials	carbon steel, stainless steel
welding method	short circuit, DC pulse
operating temperature	-10-45℃
robot control cabinet	YRC1000
certification	CCC
dimension	693368610 mm
weight	about 70kg
cable diameter	0.8/ 0.9/ 1.0/ 1.2
